TX26D208VM0AAA - FHD of 16:9 format of LTPS TFT

JDI

The TX26D208VM0AAA by JDI is a FHD of 16:9 format of LTPS TFT. Below is the official datasheet preview.

📥 Download Datasheet

TX26D208VM0AAA FHD of 16:9 format of LTPS TFT by JDI - Datasheet Preview — Official preview page of the **TX26D208VM0AAA** FHD of 16:9 format of LTPS TFT datasheet (JDI).

Datasheet Details

Part number	TX26D208VM0AAA
Manufacturer	JDI
File Size	944.11 KB
Description	FHD of 16:9 format of LTPS TFT
Datasheet	TX26D208VM0AAA-JDI.pdf
Additional preview pages of the TX26D208VM0AAA datasheet.

TX26D208VM0AAA Product details

Description

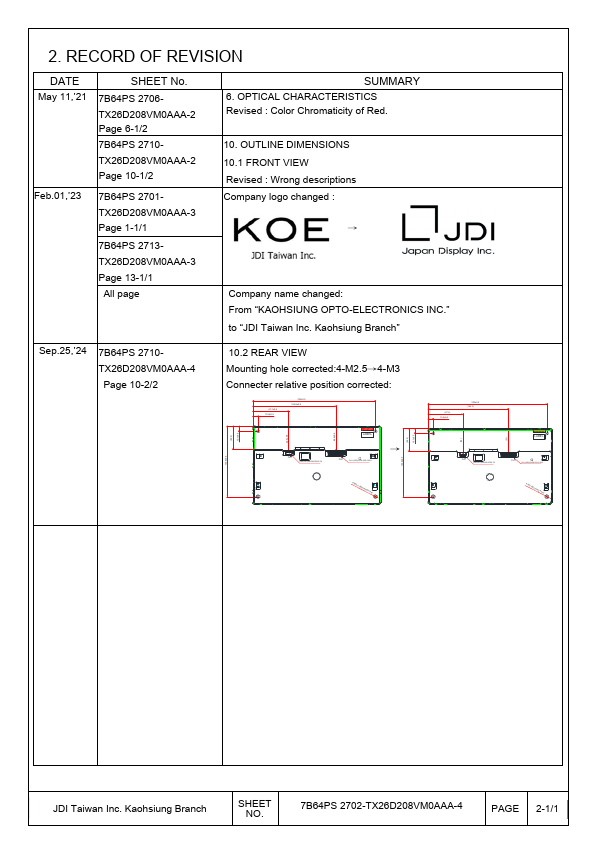

Company logo changed : → Company name changed: From “KAOHSIUNG OPTO-ELECTRONICS INC.” to “JDI Taiwan Inc.Kaohsiung Branch” Sep.25,’24 7B64PS 2710TX26D208VM0AAA-4 Page 10-2/2 10.2 REAR VIEW Mounting hole corrected:4-M2.5→4-M3 Connecter relative position corrected: 67.7±0.5 10.2±0.5 232±0.5 156.8±0.5 (67.2) 10.2±0.5 232±0.5 (156.3) 49.3±0.5 46.2±0.5 (44.2) 10.1±0.5 LABEL Pin1 CN2:(JST)SM10B-SRSS-TB Pin1 CN1:(HRS)FH28-50S-0.5SH → (44.2) 10.1±0.5 Pin1 CN2:(JST)SM10B-SRSS-TB (52)

Features

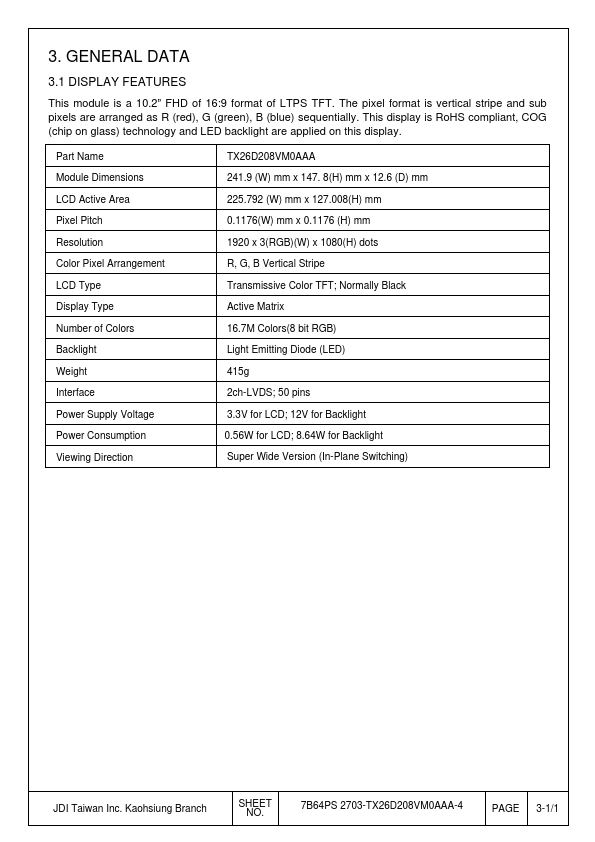

This module is a 10.2” FHD of 16:9 format of LTPS TFT. The pixel format is vertical stripe and sub pixels are arranged as R (red), G (green), B (blue) sequentially. This display is RoHS compliant, COG (chip on glass) technology and LED backlight are applied on this display. Part Name Module Dimensions LCD Active Area Pixel Pitch Resolution Color Pixel Arrangement LCD Type Display Type Number of Colors Backlight Weight Interface Power Supply Voltage Power Consumption Viewing Direction TX26D208V.
