TX31D207VM0BAA
FEATURES

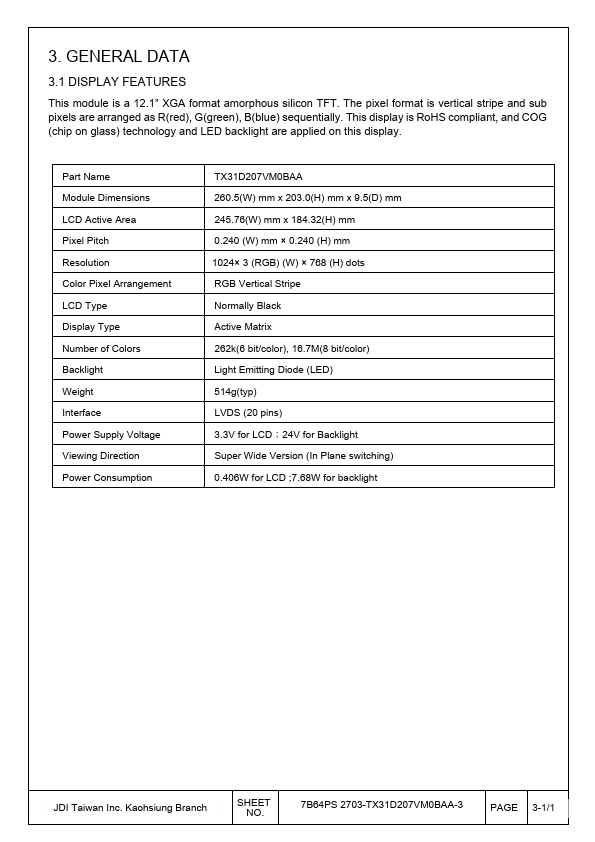

This module is a 12.1” XGA format amorphous silicon TFT. The pixel format is vertical stripe and sub pixels are arranged as R(red), G(green), B(blue) sequentially. This display is Ro HS pliant, and COG (chip on glass) technology and LED backlight are applied on this display.
Part Name Module Dimensions LCD Active Area Pixel Pitch Resolution Color Pixel Arrangement LCD Type Display Type Number of Colors Backlight Weight Interface Power Supply Voltage Viewing Direction Power Consumption
TX31D207VM0BAA 260.5(W) mm x 203.0(H) mm x 9.5(D) mm 245.76(W) mm x 184.32(H) mm 0.240 (W) mm × 0.240 (H) mm 1024× 3 (RGB) (W) × 768 (H) dots RGB Vertical Stripe Normally Black Active Matrix 262k(6 bit/color), 16.7M(8 bit/color) Light Emitting Diode (LED) 514g(typ) LVDS (20 pins) 3.3V for LCD；24V for Backlight Super Wide Version (In Plane switching) 0.406W for LCD ;7.68W for backlight
JDI Taiwan Inc. Kaohsiung Branch
SHEET NO.
7B64PS 2703-TX31D207VM0BAA-3
PAGE 3-1/1
