TX31D208VM0BAA
FEATURES

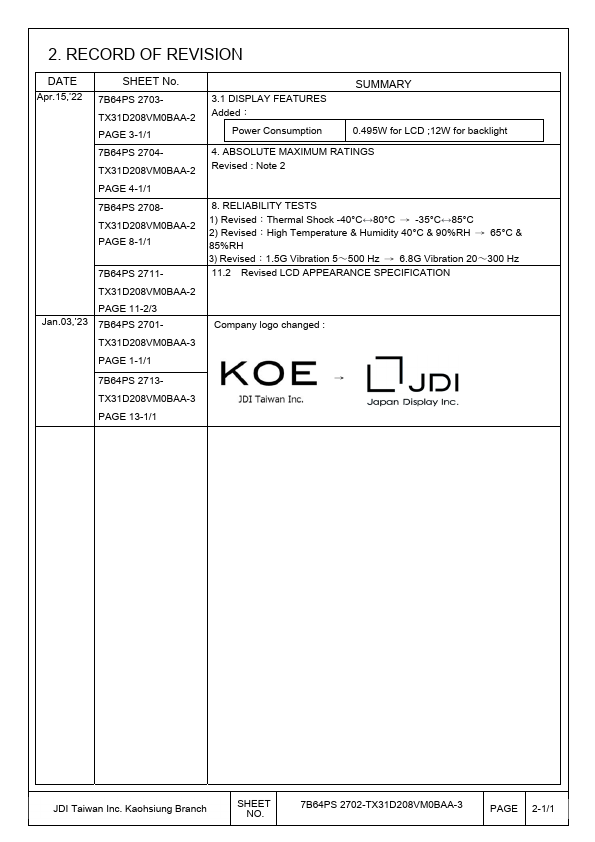

Added：
Power Consumption
SUMMARY 0.495W for LCD ;12W for backlight
4. ABSOLUTE MAXIMUM RATINGS Revised : Note 2
8. RELIABILITY TESTS 1) Revised：Thermal Shock -40°C↔80°C → -35°C↔85°C 2) Revised：High Temperature & Humidity 40°C & 90%RH → 65°C & 85%RH 3) Revised：1.5G Vibration 5～500 Hz → 6.8G Vibration 20～300 Hz
11.2 Revised LCD APPEARANCE SPECIFICATION pany logo changed :
→
JDI Taiwan Inc. Kaohsiung Branch
SHEET NO.
7B64PS 2702-TX31D208VM0BAA-3
PAGE 2-1/1

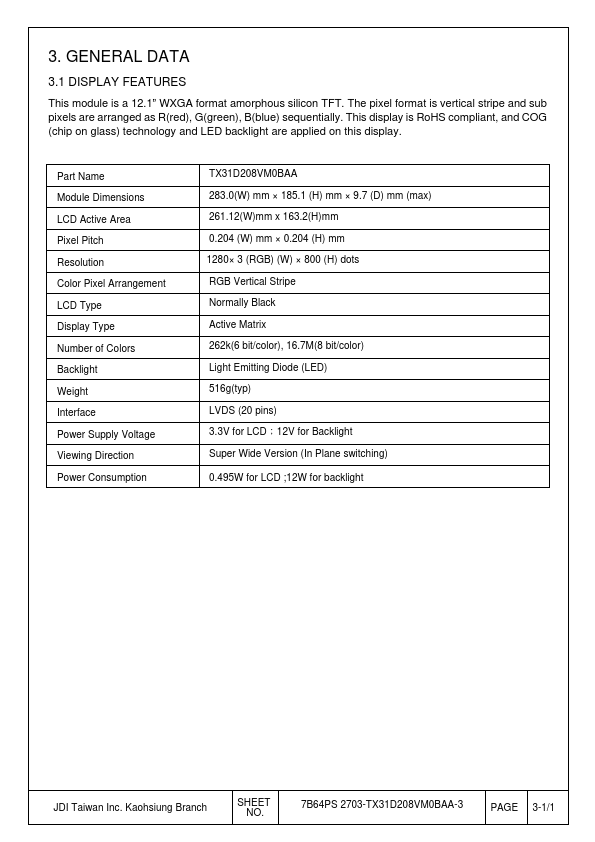

3. GENERAL DATA
3.1 DISPLAY FEATURES
This module is a 12.1” WXGA format amorphous silicon TFT. The pixel format is vertical stripe and sub pixels are arranged as R(red), G(green), B(blue) sequentially. This display is Ro HS pliant, and COG (chip on glass) technology and LED backlight are applied on this display.
Part Name Module Dimensions LCD Active Area Pixel Pitch Resolution Color Pixel Arrangement LCD Type Display Type Number of Colors Backlight Weight Interface Power Supply Voltage Viewing Direction Power...
