1.5SMC24, 1.5SMC6.8 Datasheet - JGD

1.5SMC24, 1.5SMC6.8, Surface Mount Transient Voltage Suppressors

1.5SMC SERIES 1500W, 6.8V - 200V Surface Mount Transient Voltage Suppressors .

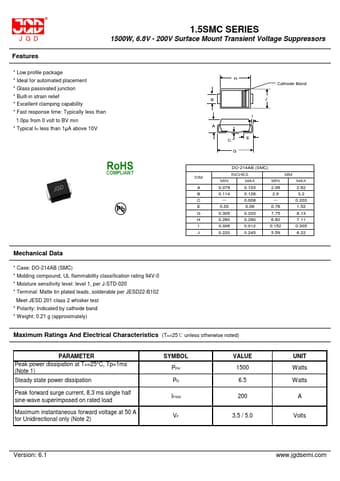

datasheet Preview Page 1 from Datasheet4u.com

1.5SMC6.8-JGD.pdf

1.5SMC24 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1.5SMC24, 1.5SMC6.8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1.5SMC24, 1.5SMC6.8

Manufacturer:

JGD

File Size:

280.14 KB

Description:

Surface Mount Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: 1.5SMC24, 1.5SMC6.8.
Please refer to the document for exact specifications by model.

Features

* Low profile package
* Ideal for automated placement
* Glass passivated junction
* Built-in strain relief
* Excellent clamping capability
* Fast response time: Typically less than 1.0ps from 0 volt to BV min
* Typical IR less than 1μA above 10V H B Cathode Band J I A

Applications

* 1. For Bidirectional Use C or CA Suffix for Types 1.5SMC6.8 - Types 1.5SMC200A 2. Electrical Characteristics Apply in Both Directions Electrical Characteristics (TA=25℃ unless otherwise noted) UNIDIRECTION AL PART NO. BI- Stand-Off DIRECTIONAL Voltage PART NO. VWM (V) 1.5SMC6.8 1.5SMC6.8A 1.
