1N5397, 1N5391 - 1.5 Amps. Silicon Rectifiers

Name: 1N5397
SKU: 1N5397-1226716

JGD

The 1N5397 by JGD is a 1.5 Amps. Silicon Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	1N5397, 1N5391
Manufacturer	JGD
File Size	402.70 KB
Description	1.5 Amps. Silicon Rectifiers
Datasheet	1N5391-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5397, 1N5391. Please refer to the document for exact specifications by model.
Additional preview pages of the 1N5397 datasheet.

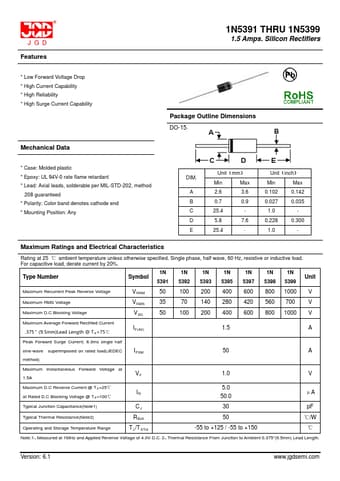

1N5391 THRU 1N5399 1.5 Amps. Silicon Rectifiers.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Mechanical Data Package Outline Dimensions DO-15：.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting Position: Any DIM. A B C D E Unit（mm） Min Max 2.6 3.6 0.7 0.9 25.4 5.
