1SMA5949B

1.5 Watt Zener Diode

JGD

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	EIC Corporation	1SMA5949B	1SMA5949B	Zener Diode Single 100V 5% 250Ohm 1500mW 2-Pin SMA	Verical	20000	5000 units	$0.1	🛒 Buy Now

📥 Download PDF (447.96 KB)

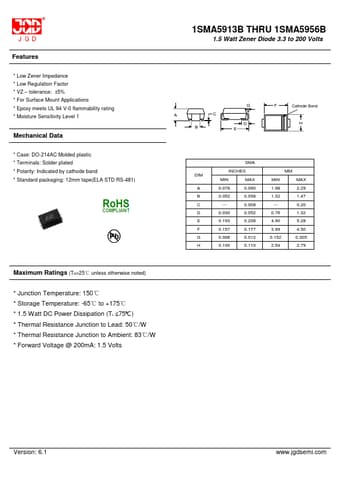

1SMA5949B Datasheet Preview Page 1 — Preview of 1SMA5949B Datasheet

Datasheet Details

Part number:

1SMA5949B

Manufacturer:

JGD

File Size:

447.96 KB

Download:

📄 Download 1SMA5949B Datasheet PDF

Description:

1.5 watt zener diode.
Features * Low Zener Impedance * Low Regulation Factor * VZ * tolerance: ±5% * For Surface Mount App.
lications * Epoxy meets UL 94 V-0 flammability rating * Moisture Sensitivity Level 1 Mechanical Data.

✔ 1SMA5949B Features

Low Zener Impedance
Low Regulation Factor
VZ
tolerance: ±5%
For Surface Mount Applications
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Le

✔ 1SMA5949B Application

Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1 Mechanical Data
Case: DO-214AC
