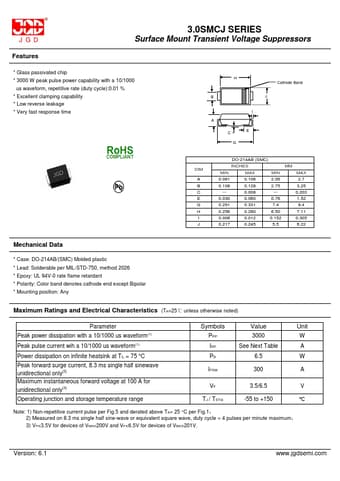

3.0SMCJ200CA Datasheet - JGD

Surface Mount Transient Voltage Suppressors

* Glass passivated chip

* 3000 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle):0.01 %

* Excellent clamping capability

* Low reverse leakage

* Very fast response time H B Cathode Band J I A C G E DO-214AB (SMC) INCHES MM DIM MIN MA

3.0SMCJ200CA

JGD

365.28 KB

Surface mount transient voltage suppressors.
