3KP5.0A - 3000Watts Transient Voltage Suppressors

JGD

Datasheet Details

3000 Watts Peak Power.
Low Inductance.
Unidirectional and Bidirectional unit.

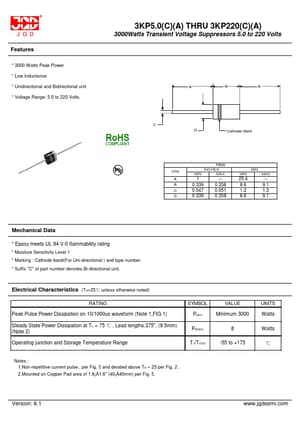

Voltage Range: 5.0 to 220 Volts. 3KP5.0(C)(A) THRU 3KP220(C)(A) 3000Watts Transient Voltage Suppressors 5.0 to 220 Volts A BA C D Cathode Mark P600 DIM INCHES MIN MAX MM MIN MAX A 1 --- 25.4 --- B 0.339 0.358 8.6 9.1 C 0.047 0.051 1.2 1.3 D 0.339 0.358 8.6 9.1 Mechanical Data.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Marking : Cathod.
