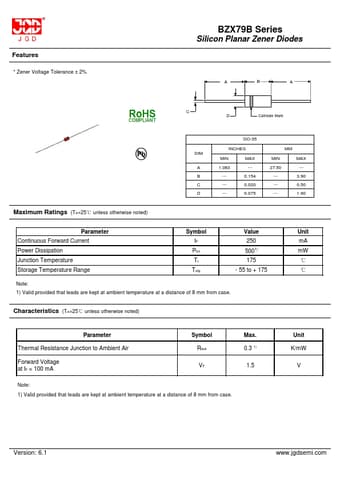

Datasheet Summary
Features
- Zener Voltage Tolerance ± 2%
BZX79B Series
Silicon Planar Zener Diodes
C D Cathode Mark
DO-35
INCHES
MIN MAX MIN MAX
A 1.083 --- 27.50 ---
--- 0.154 ---
--- 0.020 ---
--- 0.075 ---
Maximum Ratings (TA=25℃ unless otherwise noted)
Parameter Continuous Forward Current Power Dissipation Junction Temperature Storage Temperature Range
Symbol IF Ptot Tj Tstg
Value 250 5001) 175
- 55 to + 175
Note: 1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case.
Unit mA mW ℃ ℃
Characteristics (TA=25℃ unless otherwise noted)
Parameter
Thermal Resistance Junction to Ambient Air
Forward Voltage at IF =...
