S2JBF Surface Mount General Purpose Silicon Rectifiers

JGD

S2JBF Description

S2JBF Features

* S2ABF THRU S2MBF Surface Mount General Purpose Silicon Rectifiers

S2JBF Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place A C B DE
* High Temp Soldering: 260℃ for 10seconds at Terminals G F DIM. A B C D E F G SMBF INCHES MIN 0.201 0.138 0.165 0.075 0.043 0.007 0.031 MAX 0.217 0.146 0.173 0.087 0.051 0.010 0.047 Mec

📥 Download Datasheet

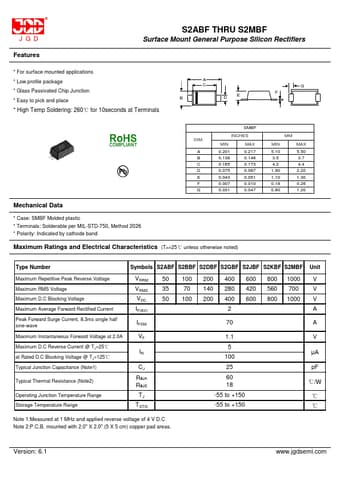

S2JBF Datasheet Preview — Preview of S2JBF PDF

Datasheet Details

Part number: S2JBF
Manufacturer: JGD
File Size: 136.73 KB
Datasheet: S2JBF-JGD.pdf
Description: Surface Mount General Purpose Silicon Rectifiers
