S5D

The S5D is Surface Mount Rectifiers designed by JGD.

Product Overview

JGD

📥 Download Datasheet

S5D Surface Mount Rectifiers by JGD - Datasheet Preview — Datasheet preview – S5D

Datasheet Details

Part number	S5D
Manufacturer	JGD
File Size	293.36 KB
Description	Surface Mount Rectifiers
Datasheet	S5D-JGD.pdf
Additional preview pages of the S5D datasheet.

Product details

Features

Glass passivated chip junction.
Ideal for automated placement.
Low forward voltage drop.
High current capability.

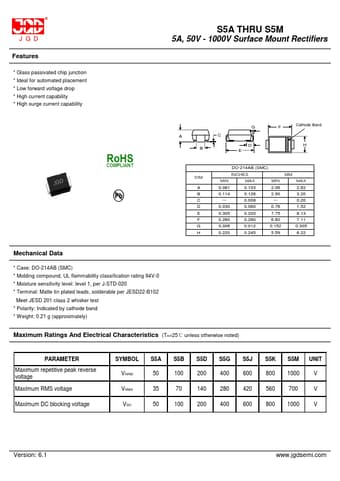

High surge current capability S5A THRU S5M 5A, 50V - 1000V Surface Mount Rectifiers A B DIM A B C D E F G H G C D E F Cathode Band H DO-214AB (SMC) INCHES MM MIN MAX MIN MAX 0.081 0.103 2.06 2.62 0.114 0.126 2.90 3.20 --- 0.008 --- 0.20 0.030 0.060 0.76 1.52 0.305 0.320 7.75 8.13 0.260 0.280 6.60 7.11 0.006 0.012 0.152 0.305.
