S5G

The S5G is Surface Mount Rectifiers designed by JGD.

Product Overview

JGD

📥 Download Datasheet

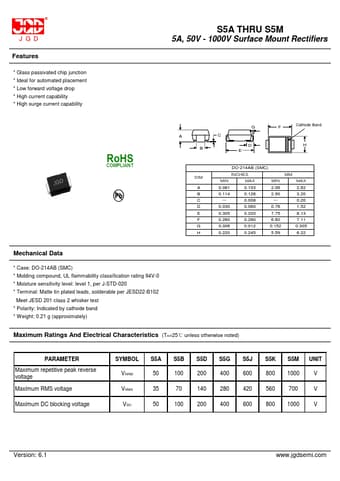

S5G Surface Mount Rectifiers by JGD - Datasheet Preview — Datasheet preview – S5G

Datasheet Details

Part number	S5G
Manufacturer	JGD
File Size	293.36 KB
Description	Surface Mount Rectifiers
Datasheet	S5G-JGD.pdf
Additional preview pages of the S5G datasheet.

Product details

Features

Glass passivated chip junction.
Ideal for automated placement.
Low forward voltage drop.
High current capability.
High surge current capability S5A THRU S5M 5A, 50V - 1000V Surface Mount Rectifiers A B DIM A B C D E F G H G C D E F Cathode Band H DO-214AB (SMC) INCHES MM MIN MAX MIN MAX 0.081 0.103 2.06 2.62 0.114 0.126 2.90 3.20 --- 0.008 --- 0.20 0.030 0.060 0.76 1.52 0.305 0.320 7.75 8.13 0.260 0.280 6.60 7.11 0.006 0.012 0.152 0.305.
