SS33, SS32 3.0 Amps. Surface Mount Schottky Barrier Rectifiers

SS33 Description

.

SS33 Features

* SS32 THRU SS320 3.0 Amps. Surface Mount Schottky Barrier Rectifiers
* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

SS33 Applications

* Low reverse leakage
* Built-in strain relief, ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 260℃/10 seconds at terminals Package Outline Dimensions in inches (millimeters) SMC： Mechanical Data
* Case: JEDEC DO-2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS33, SS32. Please refer to the document for exact specifications by model.

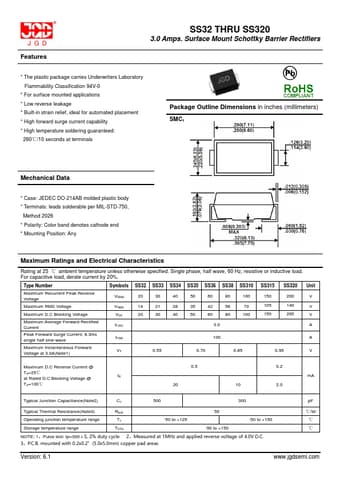

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS33, SS32
Manufacturer
JGD
File Size
279.36 KB
Datasheet
SS32-JGD.pdf
Description
3.0 Amps. Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS33, SS32.
Please refer to the document for exact specifications by model.
