AK6-100C

6000A Transient Voltage Suppressor

AK6-100C Features

* Halogen-free

* Bi-directional

* RoHS compliant

* Low slope resistance

* Very low clamping voltage

* Sharp breakdown voltage

* Glass Passivated Junction for reliability

* Foldback technology for superior clamping factor

* High temperature soldering: 260℃/10s at

AK6-100C General Description

The AK6 series of high current bidirectional transient suppressors are designed for A.C. line protection and high power DC bus clamping applications. These devices offer bidirectional port protection from 15 volts to 430 volts. They provide a clamping voltage lower than the avalanche voltage. There.

AK6-100C Datasheet (277.12 KB)

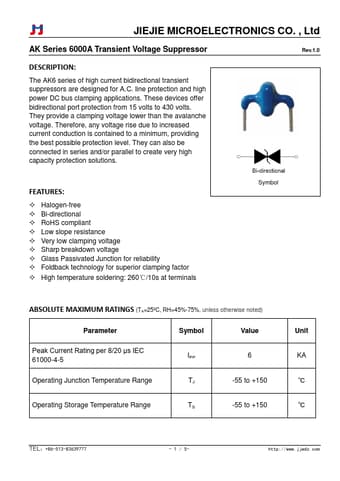

Preview of AK6-100C PDF

Datasheet Details

Part number:

AK6-100C

Manufacturer:

JIEJIE MICROELECTRONICS

File Size:

277.12 KB

Description:

6000a transient voltage suppressor.
