15BJ11CA, 15BJ5.0A, 1500W Transient Voltage Suppressor

JIEJIE MICROELECTRONICS CO., Ltd 15BJ Series 1500W Transient Voltage Suppressor Rev.1.3 .
TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications.

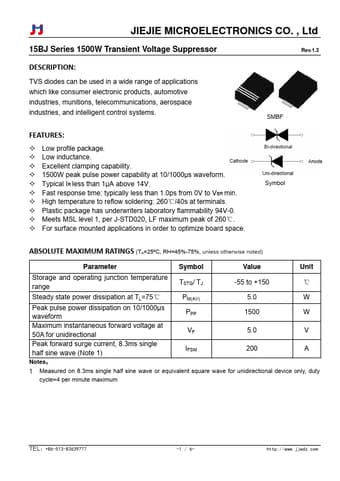

datasheet Preview Page 1 from Datasheet4u.com

15BJ5.0A-JIEJIE.pdf

15BJ11CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 15BJ11CA, 15BJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

15BJ11CA, 15BJ5.0A

Manufacturer:

JIEJIE

File Size:

255.46 KB

Description:

1500W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: 15BJ11CA, 15BJ5.0A.
Please refer to the document for exact specifications by model.

Features

*
* Low profile package.
* Low inductance.
* Excellent clamping capability.
* 1500W peak pulse power capability at 10/1000μs waveform.
* Typical IR less than 1μA above 14V.
* Fast response time: typically less than 1.0ps from 0V to VBR min. 
* High temperature to reflow s
