6AJ6.5A, 6AJ5.0A Datasheet - JIEJIE

6AJ6.5A - 600W Transient Voltage Suppressor

6AJ6.5A Features

* Low profile package.

* Low inductance.

* Excellent clamping capability. Symbol

* 600W peak pulse power capability at 10/1000μs waveform.

* Typical IR less than 1μA above 10V.

* Fast response time: typically less than 1.0ps from 0V to VBR min.

* High temperatur

6AJ5.0A-JIEJIE.pdf

This datasheet PDF includes multiple part numbers: 6AJ6.5A, 6AJ5.0A. Please refer to the document for exact specifications by model.

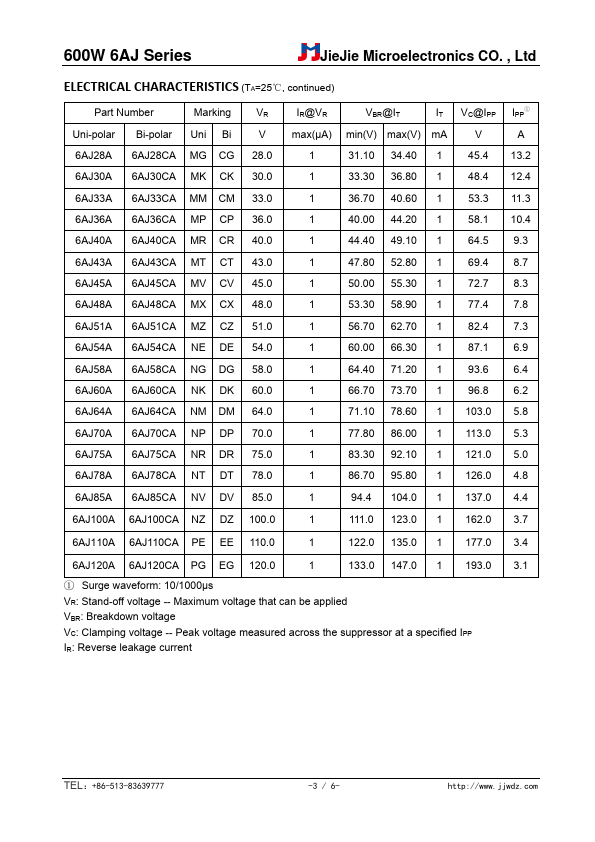

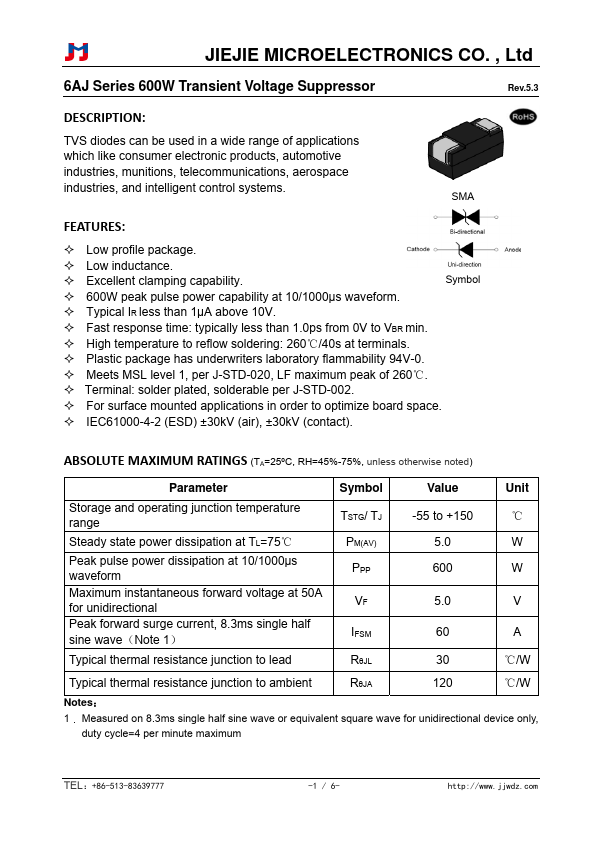

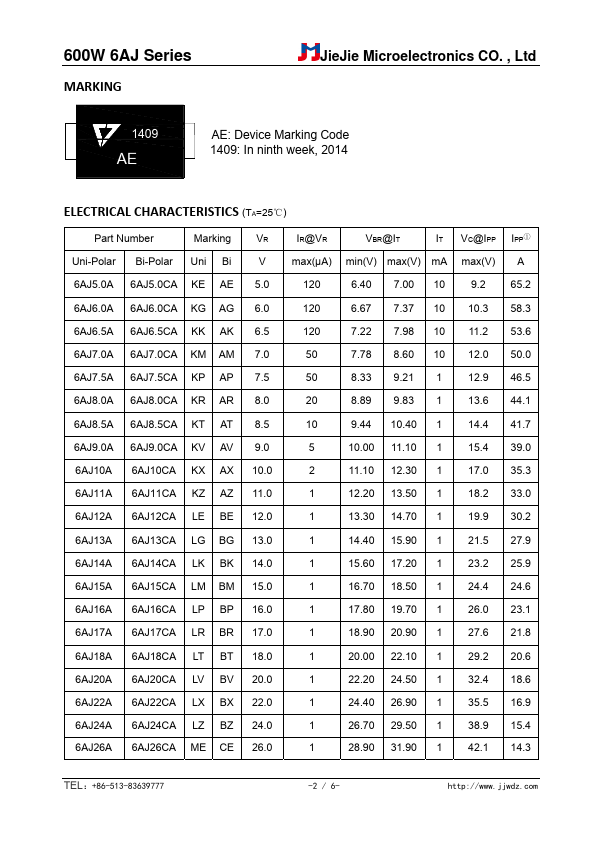

6AJ6.5A Datasheet Preview Page 2 6AJ6.5A Datasheet Preview Page 3

Datasheet Details

Part number:

6AJ6.5A, 6AJ5.0A

Manufacturer:

JIEJIE

File Size:

246.00 KB

Description:

600w transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: 6AJ6.5A, 6AJ5.0A.
Please refer to the document for exact specifications by model.
