AK3-025C

3000A Transient Voltage Suppressor

AK3-025C Features

* Halogen-free Bi-directional RoHS compliant Low slope resistance Very low clamping voltage Sharp breakdown voltage Glass passivated junction Foldback technology for superior clamping factor High temperature wave soldering: 260℃/10s at terminals Symbol ABSOLUTE MAXIMUM RATINGS(TA=25℃, RH=45%-75%, un

AK3-025C General Description

The AK3 series of high current bi-directional transient suppressors are designed for A.C. line protection and high power DC bus clamping applications. These devices offer bi-directional port protection from 15 volts to 430 volts. They provide a clamping voltage lower than the avalanche voltage. Ther.

AK3-025C Datasheet (138.03 KB)

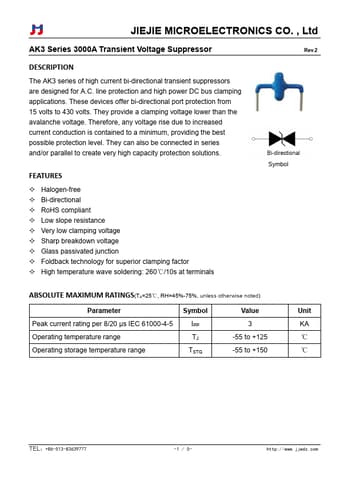

Preview of AK3-025C PDF

Datasheet Details

Part number:

AK3-025C

Manufacturer:

JIEJIE

File Size:

138.03 KB

Description:

3000a transient voltage suppressor.
