JCT631C

31A SCRs

JCT631C Features

* G(3) Symbol VDRM/ VRRM IT(RMS) IGT JCT631 600V 31A ≤40mA JCT831 800V ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj=25℃) Non repetitive surge pea

JCT631C General Description

JCT631/831 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools et.

JCT631C Datasheet (313.49 KB)

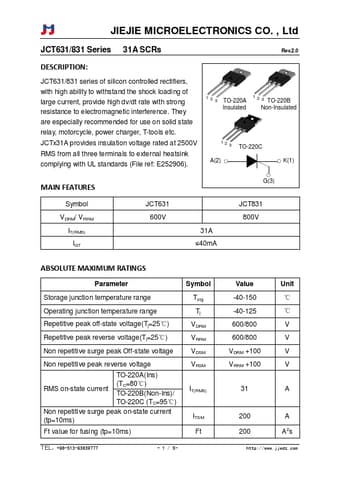

Preview of JCT631C PDF

Datasheet Details

Part number:

JCT631C

Manufacturer:

JIEJIE

File Size:

313.49 KB

Description:

31a scrs.
