JCT812, JCT612 Datasheet - JIEJIE

JCT812 - 12A SCRs

JCT612/812 series of silicon controlled rectifiers, with 2 high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance 1 2 3 TO-251 13 TO-252 to electromagnetic interference. They are especially recommended for use on solid state relay, motorcy.

JCT812 Features

* 123 TO-220F Insulated A(2) Symbol VDRM/ VRRM IT(RMS) IGT JCT612 600V 12A ≤15mA JCT812 800V ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive pe

JCT612-JIEJIE.pdf

This datasheet PDF includes multiple part numbers: JCT812, JCT612. Please refer to the document for exact specifications by model.

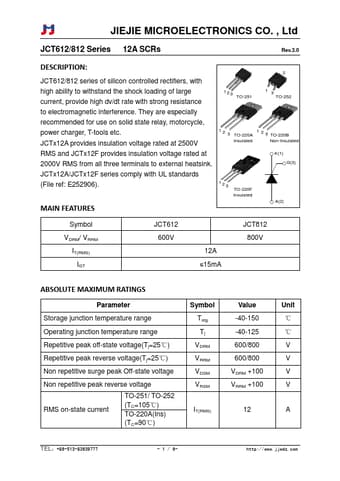

JCT812 Datasheet Preview Page 2 JCT812 Datasheet Preview Page 3

Datasheet Details

Part number:

JCT812, JCT612

Manufacturer:

JIEJIE

File Size:

376.58 KB

Description:

12a scrs.

Note:

This datasheet PDF includes multiple part numbers: JCT812, JCT612.
Please refer to the document for exact specifications by model.
