JCT840

40A SCRs

JCT840 Features

* 12 3 TO-220B: Non-Insulated 12 3 TO-220F Insulated K(1) G(3) Symbol VDRM/ VRRM IT(RMS) IGT JCT640 600V 40A ≤35mA JCT840 800V ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak

JCT840 General Description

JCTx40 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc. J.

JCT840 Datasheet (374.18 KB)

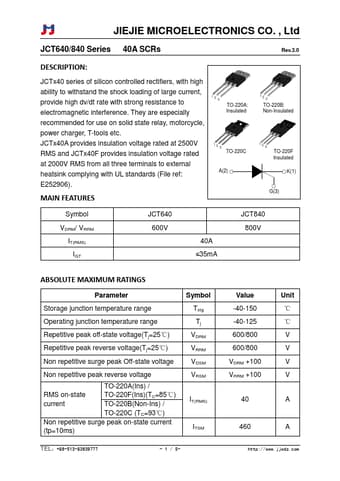

JCT840 Datasheet Preview — Preview of JCT840 PDF

Datasheet Details

Part number:

JCT840

Manufacturer:

JIEJIE

File Size:

374.18 KB

Description:

40a scrs.
