JCT855Z, JCT655 Datasheet - JIEJIE

JCT855Z, JCT655, 55A SCRs

JIEJIE MICROELECTRONICS CO., Ltd JCT655/855 Series 55A SCRs Rev.3.0 .
JCT655/855 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with s.

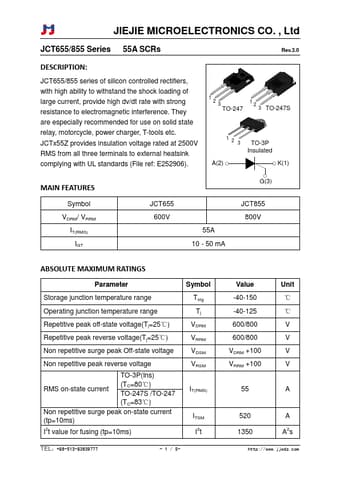

JCT655-JIEJIE.pdf

JCT855Z Datasheet Preview — This datasheet PDF includes multiple part numbers: JCT855Z, JCT655. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JCT855Z, JCT655

Manufacturer:

JIEJIE

File Size:

424.52 KB

Description:

55A SCRs

Note:

This datasheet PDF includes multiple part numbers: JCT855Z, JCT655.
Please refer to the document for exact specifications by model.

Features

* Symbol VDRM/ VRRM IT(RMS) IGT G(3) JCT655 600V 55A 10 - 50 mA JCT855 800V ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj=25℃) Non repetitive surge peak Off-s
