Datasheet Details
| Part number | JEER0502K |
|---|---|
| Manufacturer | JIEJIE |
| File Size | 783.63 KB |
| Description | EPI SUPERFAST RECOVERY RECTIFIER |
| Datasheet |
 JEER0502K-JIEJIE.pdf
|
| Part number | JEER0502K |
|---|---|
| Manufacturer | JIEJIE |
| File Size | 783.63 KB |
| Description | EPI SUPERFAST RECOVERY RECTIFIER |
| Datasheet |
JEER0502K-JIEJIE.pdf
|

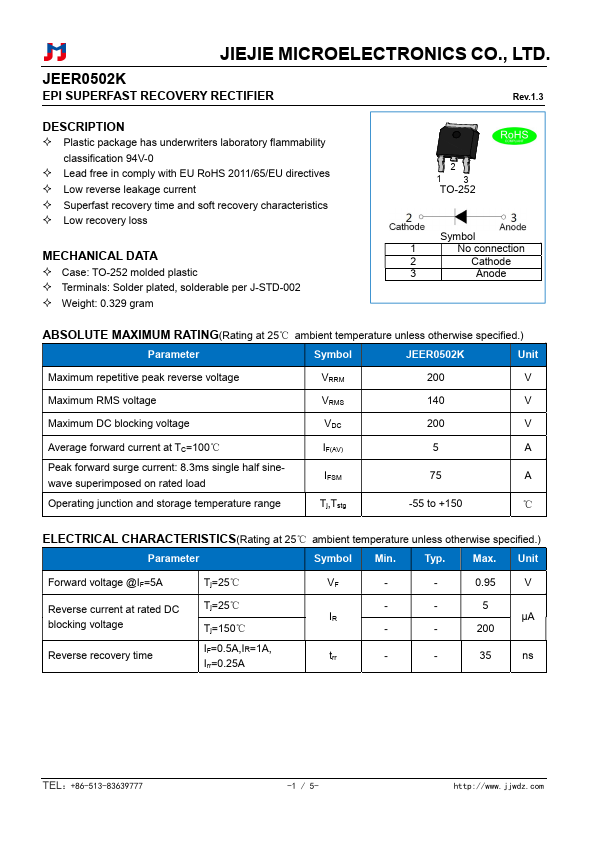

Plastic package has underwriters laboratory flammability classification 94V-0 Lead free in comply with EU RoHS 2011/65/EU directives Low reverse leakage current Superfast recovery time and soft recovery characteristics Low recovery loss MECHANICAL DATA Case: TO-252 molded plastic Terminals: Solder plated, solderable per J-STD-002 Weight: 0.329 gram 2 13 TO-252 Symbol 1 No connection 2 Cathode 3 Anode ABSOLUTE MAXIMUM RATING(Rating at 25℃ a
