JR0805B, JR0805 Datasheet - JIEJIE

JR0805B - Sensitive gate SCRs

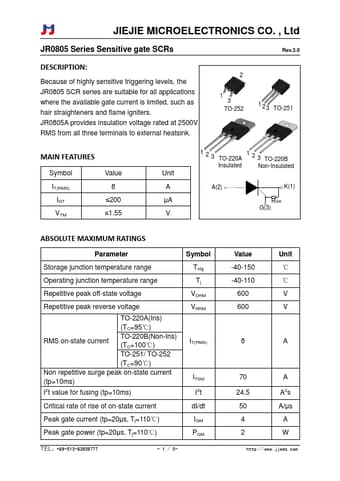

Because of highly sensitive triggering levels, the JR0805 SCR series are suitable for all applications where the available gate current is limited, such as hair straighteners and flame igniters. JR0805A provides insulation voltage rated at 2500V RMS from all three terminals to external heatsink. 2.

JR0805B Features

* Symbol IT(RMS) IGT VTM Value 8 ≤200 ≤1.55 Unit A μA V 1 2 3 TO-220A 1 2 3 TO-220B Insulated Non-Insulated A(2) K(1) RGK G(3) ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction temperature range Repetitive peak off-state voltage Tj VDRM

JR0805-JIEJIE.pdf
