JST06H

6A TRIAC

JST06H Features

* G(3) Symbol IT(RMS) VDRM /VRRM Value 6 600 and 800 Unit A V T2(2) ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage (Tj=25℃) Repetitive peak reverse voltage (Tj=25℃) Non repetitive surge peak Off-state v

JST06H General Description

JST06 series triacs, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interface. With high commutation performances, 3 quadrants products especially recommended for use on inductive load. JST06A provides insulation .

JST06H Datasheet (307.72 KB)

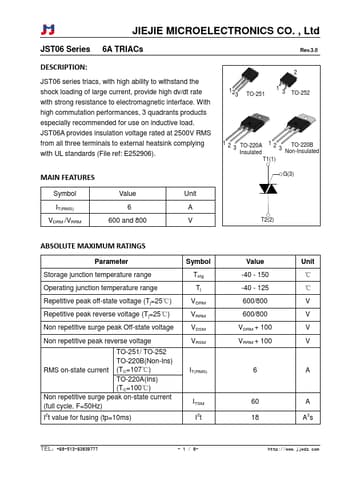

Preview of JST06H PDF

Datasheet Details

Part number:

JST06H

Manufacturer:

JIEJIE

File Size:

307.72 KB

Description:

6a triac.
