JST08X

8A TRIAC

JST08X Features

* Symbol IT(RMS) IGT1-3 VDRM /VRRM Value 8 35 800 Unit A mA V 1 2 3 TO-220FP Insulated T2(2) T1(1) G(3) ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage( Tj=25℃) Repetitive peak reverse voltage( Tj=2

JST08X General Description

JST08X series provide high dv/dt rate with strong resistance to electromagnetic interface. They are especially recommended for use on home appliances such as motor control of washing machine JST08X provides insulation voltage rated at 2000V RMS from all three terminals to external heatsink complyin.

JST08X Datasheet (277.39 KB)

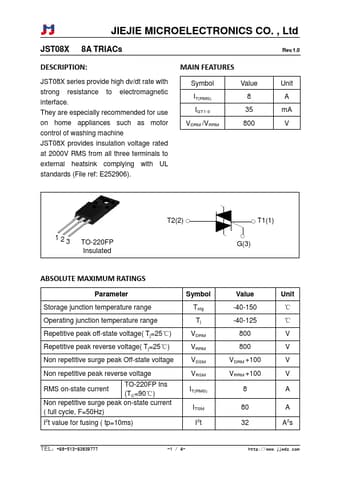

JST08X Datasheet Preview — Preview of JST08X PDF

Datasheet Details

Part number:

JST08X

Manufacturer:

JIEJIE

File Size:

277.39 KB

Description:

8a triac.
