JST138 Datasheet - JIEJIE

12A TRIAC

JST138 Features

* 1 3 TO-263 Symbol IT(RMS) VDRM /VRRM Value 12 600 and 800 Unit A V T2(2) T1(1) G(3) ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj=25℃) Tj

JST138 General Description

JST138 series triacs with low holding and latching current are especially recommended for use on middle and small resistance type power load. JST138F provides insulation voltage rated at 2000V 123 TO-220C 123 RMS from all three terminals to external heatsink complying with UL standards (File .

JST138 Datasheet (371.54 KB)

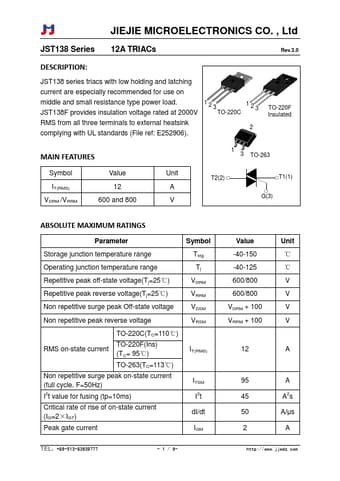

JST138 Datasheet Preview — Preview of JST138 PDF

Datasheet Details

Part number:

JST138

Manufacturer:

JIEJIE

File Size:

371.54 KB

Description:

12a triac.
