RS5DB, RS5AB FAST RECOVERY RECTIFIER

JIEJIE

Description

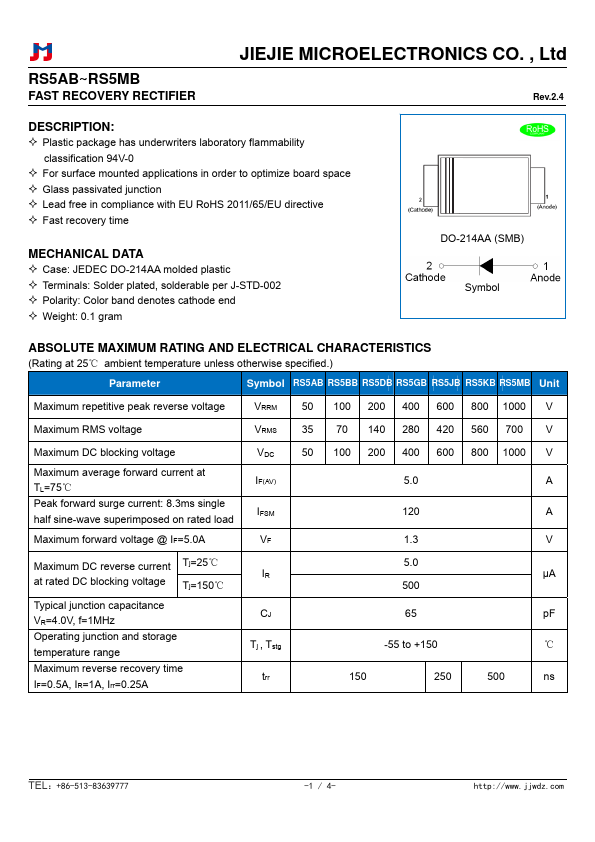

RS5AB~RS5MB FAST RECOVERY RECTIFIER JIEJIE MICROELECTRONICS CO., Ltd Rev.2.4 .
Plastic package has underwriters laboratory flammability classification 94V-0. For surface mounted applications in order to optimize board.

📥 Download Datasheet

RS5DB Datasheet Preview — This datasheet PDF includes multiple part numbers: RS5DB, RS5AB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS5DB, RS5AB
Manufacturer: JIEJIE
File Size: 204.23 KB
Datasheet: RS5AB-JIEJIE.pdf
Description: FAST RECOVERY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: RS5DB, RS5AB.
Please refer to the document for exact specifications by model.

Applications

* in order to optimize board space
* Glass passivated junction
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Fast recovery time MECHANICAL DATA

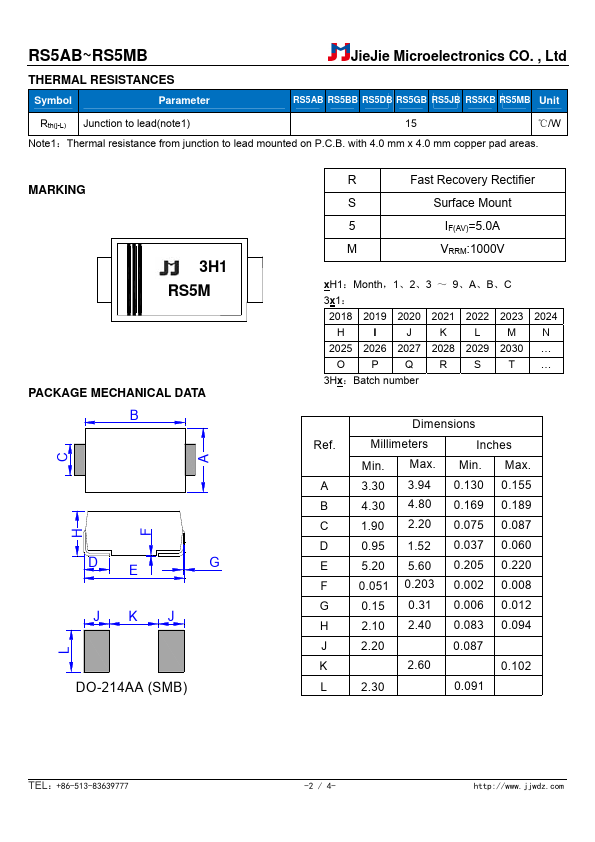

* Case: JEDEC DO-214AA molded plastic
* Terminals: Solder plated, solderable per J-STD-002
* Polarity: Color band deno
