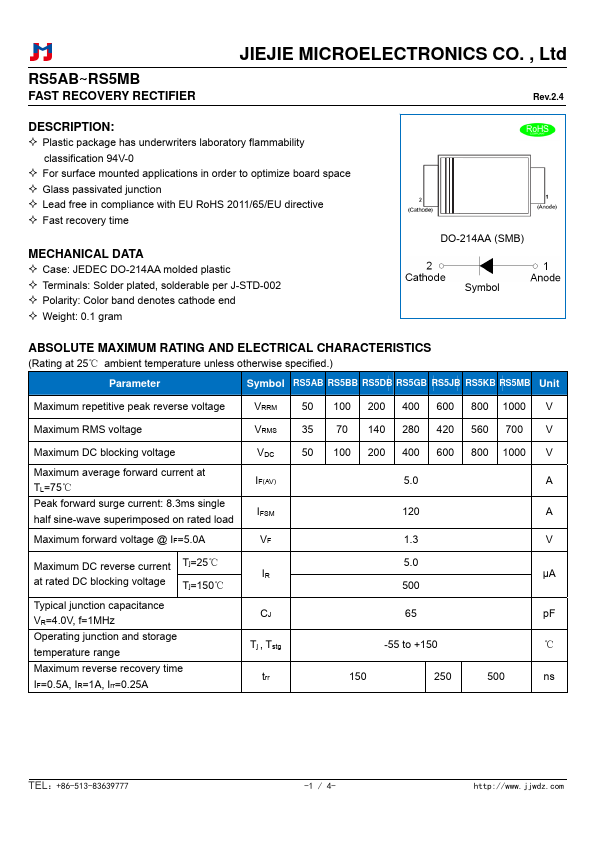

RS5JB
DESCRIPTION
:
- Plastic package has underwriters laboratory flammability classification 94V-0
- For surface mounted applications in order to optimize board space
- Glass passivated junction
- Lead free in pliance with EU Ro HS 2011/65/EU directive
- Fast recovery time
MECHANICAL DATA
- Case: JEDEC DO-214AA molded plastic
- Terminals: Solder plated, solderable per J-STD-002
- Polarity: Color band denotes cathode end
- Weight: 0.1 gram
DO-214AA (SMB) Symbol
ABSOLUTE MAXIMUM RATING AND ELECTRICAL CHARACTERISTICS
(Rating at 25℃ ambient temperature unless otherwise specified.)
Parameter
Symbol RS5AB RS5BB RS5DB RS5GB RS5JB RS5KB RS5MB Unit
Maximum repetitive peak reverse voltage
VRRM
50 100 200 400 600 800 1000 V
Maximum RMS voltage
VRMS
35 70 140 280 420 560 700 V
Maximum DC blocking voltage
Maximum average forward current at TL=75℃ Peak forward surge current: 8.3ms single half sine-wave superimposed on rated load
Maximum forward voltage @ IF=5.0A
VDC IF(AV) IFSM VF
50 100 200...
