SH1003AQ Datasheet - JIEJIE

SH1003AQ, N-Ch Power MOSFET

100V 2.8m N-Ch Power MOSFET JMSH1003AGQ .

datasheet Preview Page 1 from Datasheet4u.com

SH1003AQ-JIEJIE.pdf

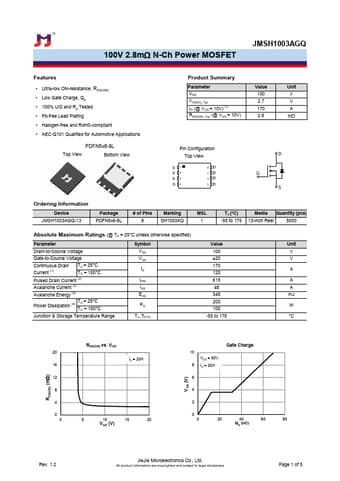

SH1003AQ Datasheet Preview — Preview of SH1003AQ PDF

Datasheet Details

Part number:

SH1003AQ

Manufacturer:

JIEJIE

File Size:

302.20 KB

Description:

N-Ch Power MOSFET

Features

* Ultra-low ON-resistance, RDS(ON)
* Low Gate Charge, Qg
* 100% UIS and Rg Tested
* Pb-free Lead Plating
* Halogen-free and RoHS-compliant

Applications

* PDFN5x6-8L Top View Bottom View Product Summary Parameter VDS VGS(th)_Typ ID (@ VGS = 10V) (1) RDS(ON)_Typ (@ VGS = 10V) Value 100 2.7 170 2.8 Unit V V A m Pin Configuration Top View 1 8 2 7 3 6 4 5 D G S Ordering Information Device JMSH1003AGQ-13 Package PDFN5x6-8L # of Pins 8
