JCS5N50T

N-CHANNEL MOSFET

JILIN SINO-MICROELECTRONICS

📥 Download PDF (1.61 MB)

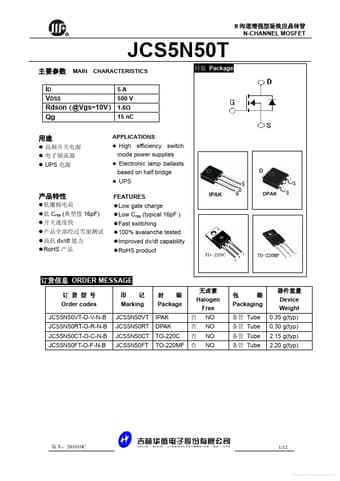

JCS5N50T Datasheet Preview Page 1 — Preview of JCS5N50T Datasheet

Datasheet Details

Part number:

JCS5N50T

Manufacturer:

JILIN SINO-MICROELECTRONICS

File Size:

1.61 MB

Download:

📄 Download JCS5N50T Datasheet PDF

Description:

N-channel mosfet.
R N N-CHANNEL MOSFET JCS5N50T MAIN CHARACTERISTICS Package ID VDSS Rdson （@Vgs=10V） Qg z z .
z UPS 5A 500 V 1.6Ω 15 nC APPLICATIONS z High efficiency switch mode power supplies z Electroni.

✔ JCS5N50T Features

z Low gate charge z Low Crss (typical 16pF ) z Fast switching z 100% avalanche tested z Improved dv/dt capability z RoHS product z z Crss ( 16pF) z z z dv/dt z Ro

✔ JCS5N50T Application

z High efficiency switch mode power supplies z Electronic lamp ballasts based on half bridge z UPS FEATURES
