JCS12N60T Datasheet, Mosfet, JILIN SINO

JCS12N60T Features

  • Mosfet zLow gate charge zLow Crss (typical 23pF ) zFast switching z100% avalanche tested zImproved dv/dt capability zRoHS product ORDER MESSAGE Order codes Marking Package JCS12N60CT-O-C-

PDF File Details

Part number:

JCS12N60T

Manufacturer:

JILIN SINO

File Size:

1.04MB

Download:

📄 Datasheet

Description:

N-channel mosfet.

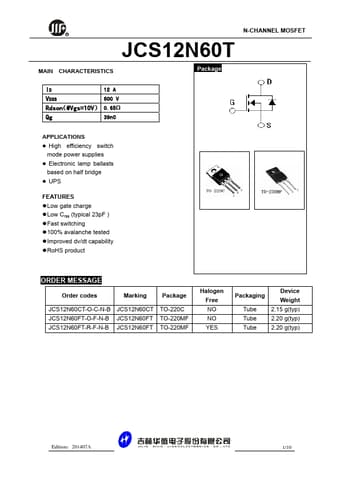

Datasheet Preview: JCS12N60T 📥 Download PDF (1.04MB)
Page 2 of JCS12N60T Page 3 of JCS12N60T

JCS12N60T Application

  • Applications z High efficiency switch mode power supplies z Electronic lamp ballasts based on half bridge z UPS FEATURES zLow gate charge zLow Crss
