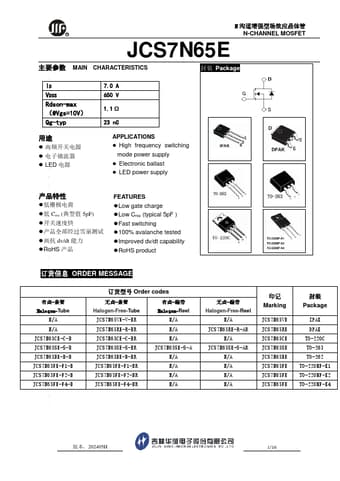

JCS7N65BE MOSFET Datasheet - JILIN SINO

JCS7N65BE Features

Mosfet
Low gate charge
Low Crss (typical 5pF )
Fast switching
100% avalanche tested
Improved dv/dt capability
RoHS product ORDER MESSAGE

PDF File Details

Part number:

JCS7N65BE

Manufacturer:

JILIN SINO

File Size:

1.85MB

Download:

📄 Datasheet

Description:

N-channel mosfet.

📥 Download PDF (1.85MB)

JCS7N65BE Application

Applications
High frequency switching mode power supply
Electronic ballast
LED power supply
Crs
