JCS9N90WT, JCS9N90T, N-CHANNEL MOSFET

N R N-CHANNEL MOSFET JCS9N90T MAIN CHARACTERISTICS Package ID VDSS Rdson-Max （Vgs=10V） Qg * * * LED 9A 900 V 1.35 Ω 43 nC AP.

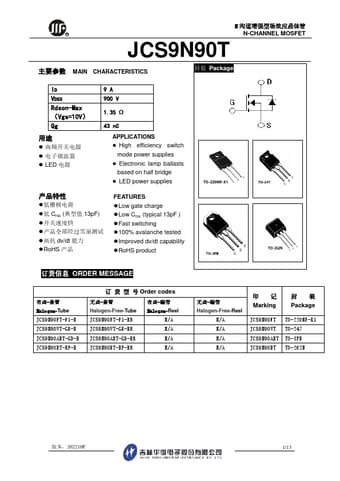

datasheet Preview Page 1 from Datasheet4u.com

JCS9N90T-JILINSINO.pdf

JCS9N90WT Datasheet Preview — This datasheet PDF includes multiple part numbers: JCS9N90WT, JCS9N90T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JCS9N90WT, JCS9N90T

Manufacturer:

JILIN SINO

File Size:

1.30 MB

Description:

N-CHANNEL MOSFET

Note:

This datasheet PDF includes multiple part numbers: JCS9N90WT, JCS9N90T.
Please refer to the document for exact specifications by model.

Features

* Low gate charge
* Low Crss (typical 13pF )
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability
* RoHS product TO-247 ORDER MESSAGE - Halogen-Tube JCS9N90FT-F1-B JCS9N90WT-GE-B JCS9N90ABT-GD-B JCS9N90BT-BP-B Order codes - - Halogen-Free-Tube JCS9N90FT-

Applications

* High efficiency switch mode power supplies
* Electronic lamp ballasts based on half bridge
* LED power supplies
* Crss ( 13pF)
* dv/dt
