SPE05M50T-C - Intelligent Power Module

Product Overview

JILIN SINO

Datasheet Details

Part number	SPE05M50T-C
Manufacturer	JILIN SINO
File Size	1.24 MB
Description	Intelligent Power Module
Datasheet	SPE05M50T-C Datasheet

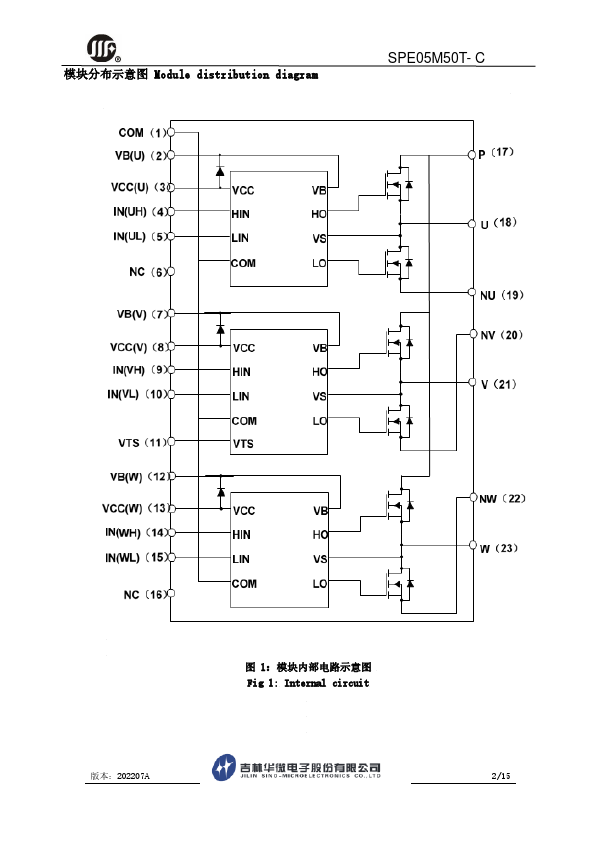

Additional preview pages of the SPE05M50T-C datasheet.

Product details

Description

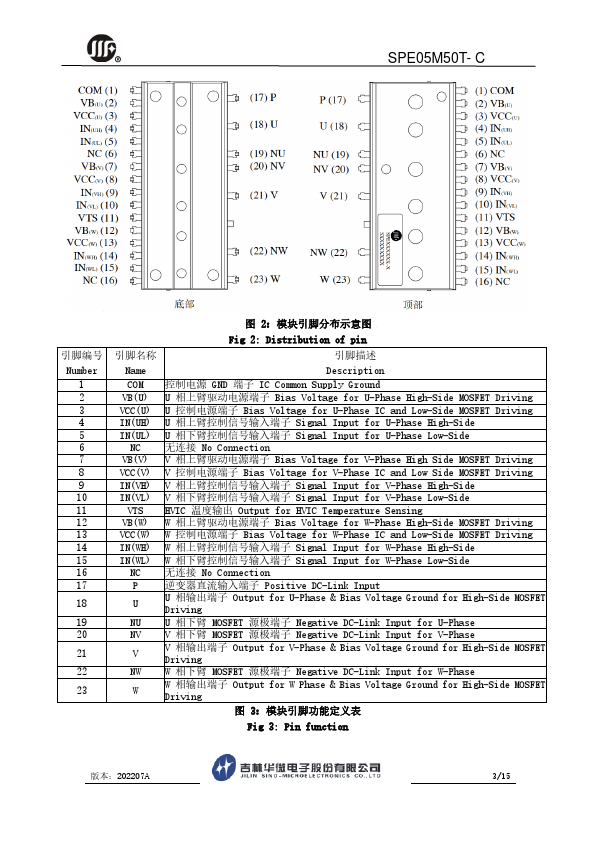

GND IC Common Supply Ground U Bias Voltage for U-Phase High-Side MOSFET Driving U Bias Voltage for U-Phase IC and Low-Side MOSFET Driving U Signal Input for U-Phase High-Side U Signal Input for U-Phase Low-Side No Connection V Bias Voltage for V-Phase High Side MOSFET Driving V Bias Voltage for V-Phase IC and Low Side MOSFET Driving V Signal Input for V-Phase High-Side V Signal Input for V-Phase Low-Side HVIC Output for HVIC Temperature Sensing W Bias Voltage for W-Phase High-Side M

Features

Signal high level valid, compatible with 3.3v and 5V MCU.
Lower arm MOSFET source electrode output.
Built-in bootstrap diode.
Built-in straight through protection.
Built-in undervoltage protection.
Temperature detection: negative temperature coefficient thermistor detection output.
Resistant to high voltage 1500V PIN1-PIN23 ORDER.
