DF005

GLASS PASSIVATED BRIDGE RECTIFIER

DF005 Features

* DB101(DF005) THRU DB107(DF10) GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage: 50 to 1000 Volts Forward Current: 1.0 Amps DB Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Glass passivated chip junction Rating to 1000V PRV Ideal for printed circuit board High tempe

DF005 Datasheet (48.16 KB)

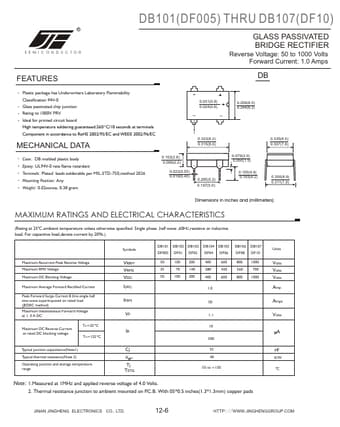

Preview of DF005 PDF

Datasheet Details

Part number:

DF005

Manufacturer:

JINAN JINGHENG ELECTRONICS

File Size:

48.16 KB

Description:

Glass passivated bridge rectifier.
