DF1501, DF15005 GLASS PASSIVATED BRIDGE RECTIFIER

DF1501 Description

R SEMICONDUCTOR .

DF1501 Features

* DB151(DF15005) THRU DB157(DF1510) GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage: 50 to 1000 Volts Forward Current: 1.5 Amps DB Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Glass passivated chip junction Rating to 1000V PRV Ideal for printed circuit board High t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1501, DF15005. Please refer to the document for exact specifications by model.

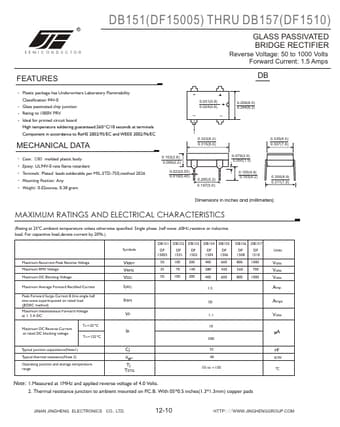

datasheet Preview Page 2

Datasheet Details

Part number
DF1501, DF15005
Manufacturer
JINAN JINGHENG ELECTRONICS
File Size
53.50 KB
Datasheet
DF15005-JINANJINGHENGELECTRONICS.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DF1501, DF15005.
Please refer to the document for exact specifications by model.
