MUR840, MUR820 GLASS PASSIVATED SUPER FAST RECTIFIER

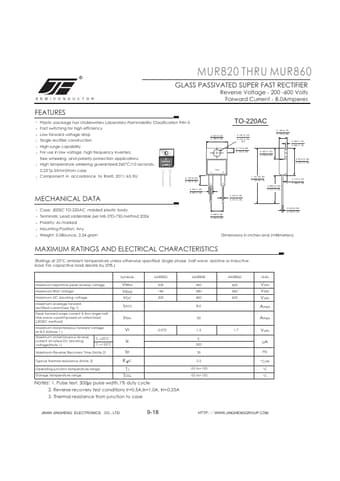

📥 Download Datasheet Datasheet Preview Page 1

Description

R SEMICONDUCTOR MUR820 THRU MUR860 GLASS PASSIVATED SUPER FAST RECTIFIER Reverse Voltage - 200 -600 Volts Forward Current - 8.0Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MUR840, MUR820. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
MUR840, MUR820
Manufacturer
JINAN JINGHENG ELECTRONICS
File Size
50.11 KB
Datasheet
MUR820-JINANJINGHENGELECTRONICS.pdf
Description
GLASS PASSIVATED SUPER FAST RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MUR840, MUR820.
Please refer to the document for exact specifications by model.

Applications

* JF MUR860 High temperature soldering guaranteed:260°C/10 seconds, 0.25"(6.35mm)from case Component in accordance to RoHS 2011/65/EU 0.159(4.05) 0.140(3.55) MECHANICAL DATA 0.053(1.34) 0.047(1.20) Case: JEDEC TO-220AC molded plastic body Terminals: Lead solderable per MIL-STD-750,method 2026
