1N5367, 1N5342 - 5W SILICON PLANAR ZENER DIODES

JINAN JINGHENG

📥 Download Datasheet

1N5367 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5367, 1N5342. Please refer to the document for exact specifications by model.

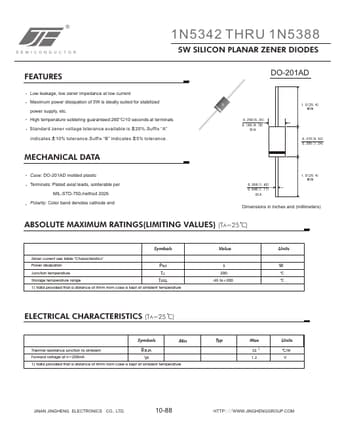

datasheet Preview Page 2

Datasheet Details

Part number	1N5367, 1N5342
Manufacturer	JINAN JINGHENG
File Size	61.58 KB
Description	5W SILICON PLANAR ZENER DIODES
Datasheet	1N5342-JINANJINGHENG.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5367, 1N5342. Please refer to the document for exact specifications by model.

1N5367 Product details

Features

Low leakage, low zener impedance at low current Maximum power dissipation of 5W is ideally suited for stabilized power supply, etc. High temperature soldering guaranteed:260°C/10 seconds at terminals Standard zener voltage tolerance available is ±20%. Suffix “A” indicates ±10% tolerance. Suffix “B” indicates ±5% tolerance.
