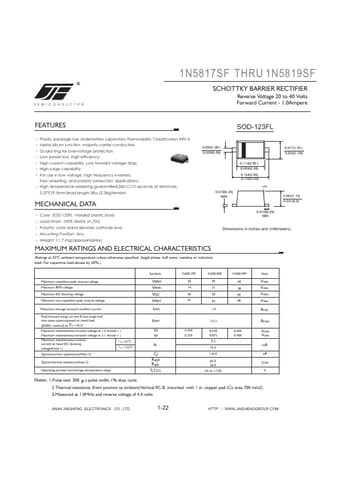

Part number: 1N5818SF
Manufacturer: JINAN JINGHENG
File Size: 66.51KB
Download: 📄 Datasheet
Description: SCHOTTKY BARRIER RECTIFIER
.
SOD-123FL
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Metal silicon junction ,majority carrier conduction
Guard ring for overvoltage.
High temperature soldering guaranteed:260 C/10 seconds at terminals,
0.375"(9.5mm)lead length,5lbs.(2.3kg)tension
MEC.
