BY550-1000, BY550-50 GENERAL PURPOSE PLASTIC RECTIFIER

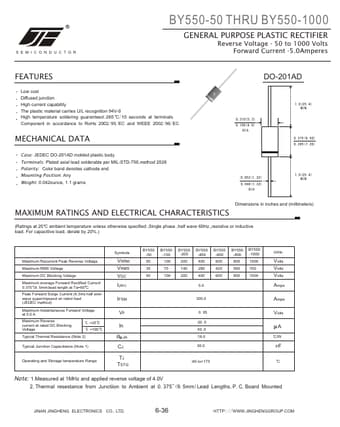

📥 Download Datasheet  Datasheet Preview Page 1

Description

R SEMICONDUCTOR BY550-50 THRU BY550-1000 GENERAL PURPOSE PLASTIC RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current -5.0Amperes JF SILICON.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BY550-1000, BY550-50. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
BY550-1000, BY550-50
Manufacturer
JINAN JINGHENG
File Size
52.39 KB
Datasheet
BY550-50-JINANJINGHENG.pdf
Description
GENERAL PURPOSE PLASTIC RECTIFIER
Note
This datasheet PDF includes multiple part numbers: BY550-1000, BY550-50.
Please refer to the document for exact specifications by model.

Features

* Low cost Diffused junction High current capability The plastic material carries U/L recognition 94V-0 High temperature soldering guaranteed:260 C/10 seconds at terminals Component in accordance to RoHs 2002/95/EC and WEEE 2002/96/EC MECHANICAL DATA Case: JEDEC DO-201AD molded plastic body Terminals:
