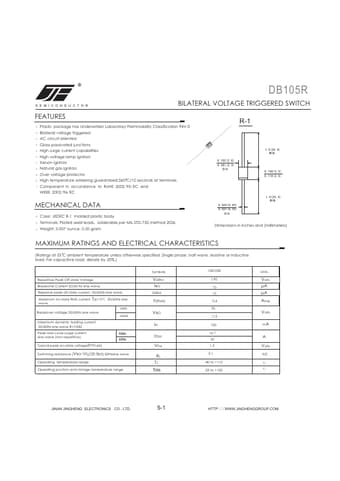

DB105R
FEATURES
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Bilateral voltage triggered AC circuit oriented Glass-passivated junctions High surge current capabilities High voltage lamp ignitors Xenon ignitors Natural gas ignitors Over voltage protector High temperature soldering guaranteed:260 C/10 seconds at terminals ponent in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
MECHANICAL DATA
Case: JEDEC R-1 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750,method 2026 Weight: 0.007 ounce, 0.20 gram
R-1
0.102(2.6)
0.091(2.3) DIA.
1.0(25.4) MIN.
0.140(3.5) 0.116(2.9)
0.025(0.65) 0.021(0.55)
DIA.
1.0(25.4) MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Ratings at 25 C ambient temperature unless otherwise specified ,Single phase ,half wave ,resistive or inductive load. For capacitive load, derate by 20%.)
Repetitive...
