FR205G - GLASS PASSIVATED FAST RECOVERY RECTIFIER

This page provides the datasheet information for the FR205G, a member of the FR201G GLASS PASSIVATED FAST RECOVERY RECTIFIER family.

Datasheet Summary

Features

  • DO-15 Low leakage Low forward voltage drop High current capability High current surge High reliability High temperature soldering guaranteed:260°C/10 seconds at terminals Component in accordance to RoHS 2011/65/EU.

📥 Download Datasheet

Datasheet preview – FR205G

Datasheet Details

Part number FR205G
Manufacturer JINAN JINGHENG
File Size 48.67 KB
Description GLASS PASSIVATED FAST RECOVERY RECTIFIER
Datasheet download datasheet FR205G Datasheet
Additional preview pages of the FR205G datasheet.

📁 Similar Datasheet

  • FR205G - FAST RECOVERY GLASS PASSIVATED RECTIFIERS (Sangdest Microelectronics)
  • FR205G - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (GOOD-ARK Electronics)
  • FR205G - 2.0 AMP GLASS PASSIVATED FAST RECOVERY RECTIFIERS (Formosa MS)
  • FR205G - FAST RECOVERY GLASS PASSIVATED RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes) (Rectron)
  • FR205G - TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER (Dc Components)
  • FR205G - GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIERS (EIC discrete)
  • FR205G - 2A FAST RECOVERY GLASS PASSIVATED RECTIFIER (Frontier Electronics)
  • FR205G - 2.0A Leaded Type Glass Passivated Fast Recovery Rectifiers (American First Semiconductor)
  • FR205G - 2.0AMPS Glass Passivated Fast Recovery Rectifiers (Taiwan Semiconductor)
  • FR205G - Glass Passivated Fast Recovery Rectifiers (LGE)
Other Datasheets by JINAN JINGHENG
  • FR201G - GLASS PASSIVATED FAST RECOVERY RECTIFIER
  • FR202G - GLASS PASSIVATED FAST RECOVERY RECTIFIER
  • FR203G - GLASS PASSIVATED FAST RECOVERY RECTIFIER
  • FR204G - GLASS PASSIVATED FAST RECOVERY RECTIFIER
  • FR206G - GLASS PASSIVATED FAST RECOVERY RECTIFIER
  • FR207G - GLASS PASSIVATED FAST RECOVERY RECTIFIER

Full PDF Text Transcription

Click to expand full text

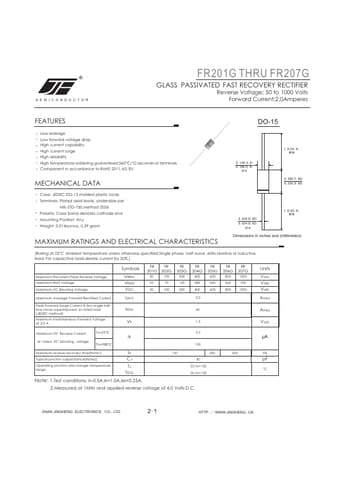

R SEMICONDUCTOR FR201G THRU FR207G GLASS PASSIVATED FAST RECOVERY RECTIFIER Reverse Voltage: 50 to 1000 Volts Forward Current:2.0Amperes FEATURES DO-15 Low leakage Low forward voltage drop High current capability High current surge High reliability High temperature soldering guaranteed:260°C/10 seconds at terminals Component in accordance to RoHS 2011/65/EU MECHANICAL DATA 0.144(3.6) 0.104(2.6) DIA 1.0(25.4) MIN 0.300(7.60) 0.230(5.60) Case: JEDEC DO-15 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.014ounce, 0.39 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS 0.034(0.85) 0.024(0.62) DIA 1.0(25.
