LL700A - SMALL SIGNAL SCHOTTKY DIODES

This page provides the datasheet information for the LL700A, a member of the LL700 SMALL SIGNAL SCHOTTKY DIODES family.

Datasheet Summary

Features

Low forward voltage drop Satisfactory wave detection efficiency Small temperature coefficient of forward characteristics Extremely low reverse current These products are ideal for use in ordinary wave detection and super high speed switching circuits High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU.

JINAN JINGHENG

📥 Download Datasheet

Datasheet Details

Part number	LL700A
Manufacturer	JINAN JINGHENG
File Size	34.13 KB
Description	SMALL SIGNAL SCHOTTKY DIODES
Datasheet	LL700A Datasheet

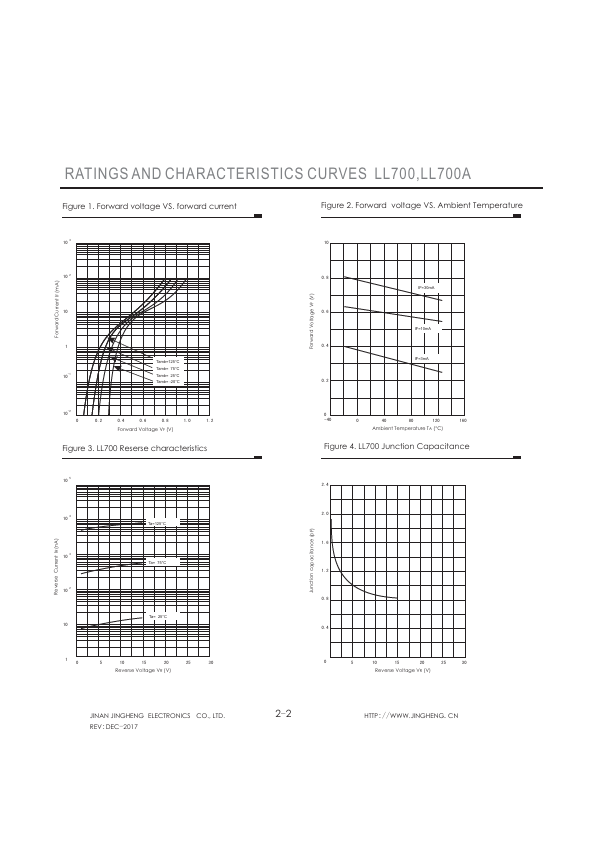

Additional preview pages of the LL700A datasheet.

📁 Similar Datasheet

LL700A - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
LL700A - SILICON EXPITAXIAL PLANAR TYPE SCHOTTKY BARRIER DIODES (SEMTECH ELECTRONICS)
LL700 - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
LL700 - SILICON EXPITAXIAL PLANAR TYPE SCHOTTKY BARRIER DIODES (SEMTECH ELECTRONICS)

Other Datasheets by JINAN JINGHENG

LL700 - SMALL SIGNAL SCHOTTKY DIODES

Full PDF Text Transcription

Click to expand full text

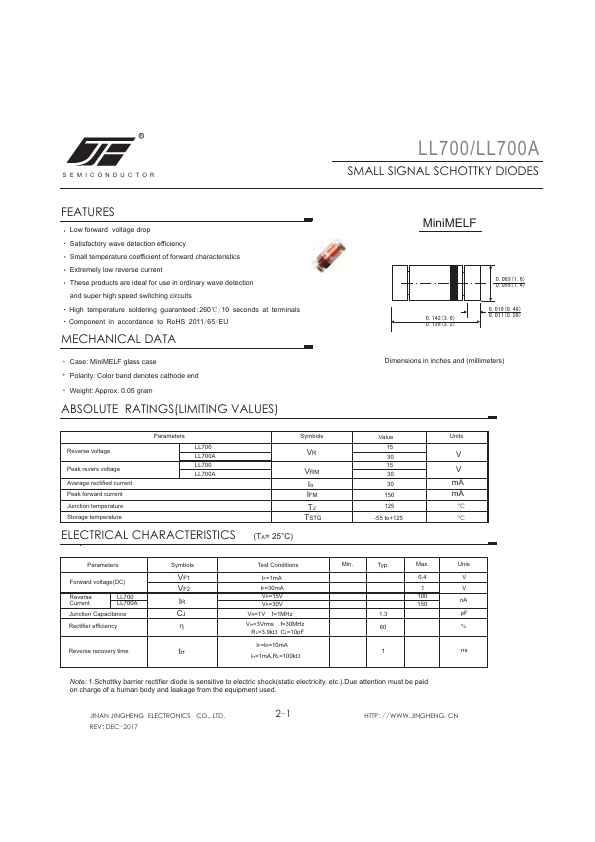

R SEMICONDUCTOR LL700/LL700A SMALL SIGNAL SCHOTTKY DIODES FEATURES Low forward voltage drop Satisfactory wave detection efficiency Small temperature coefficient of forward characteristics Extremely low reverse current These products are ideal for use in ordinary wave detection and super high speed switching circuits High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU MECHANICAL DATA Case: MiniMELF glass case Polarity: Color band denotes cathode end Weight: Approx. 0.05 gram ABSOLUTE RATINGS(LIMITING VALUES) MiniMELF 0.142(3.6) 0.126(3.2) 0.063(1.6) 0.055(1.4) 0.019(0.48) 0.011(0.
