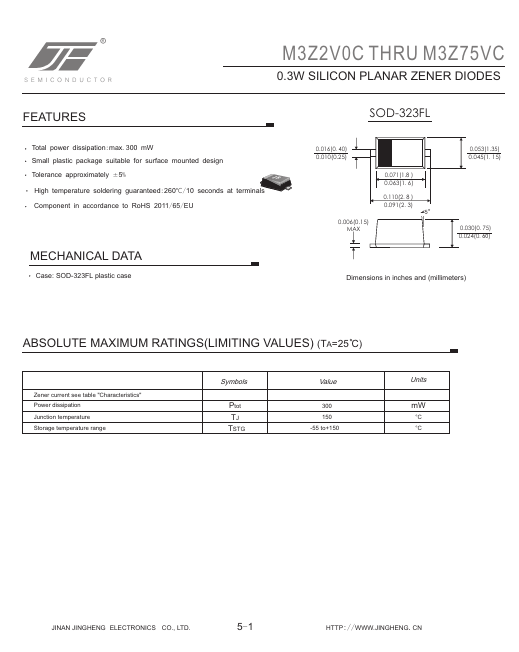

M3Z12VC
FEATURES
Total power dissipation:max.300 m W
Small plastic package suitable for surface mounted design
Tolerance approximately ±5%
High temperature soldering guaranteed:260℃/10 seconds at terminals ponent in accordance to Ro HS 2011/65/EU
MECHANICAL DATA
Case: SOD-323FL plastic case
SOD-323FL
0.016(0.40) 0.010(0.25)
0.006(0.15) MAX
0.071(1.8 ) 0.063(1.6)
0.110(2.8 ) 0.091(2.3)
5°
0.053(1.35) 0.045(1.15)
0.030(0.75) 0.024(0.60)
Dimensions in inches and (millimeters)
ABSOLUTE MAXIMUM RATINGS(LIMITING VALUES) (TA=25 C)
Zener current see table "Characteristics" Power dissipation Junction temperature Storage temperature range
Symbols
Ptot TJ TSTG
Value
300 150 -55 to+150
Units m W
°C °C
JINAN JINGHENG ELECTRONICS CO., LTD.
5-1
HTTP://.JINGHENG.CN

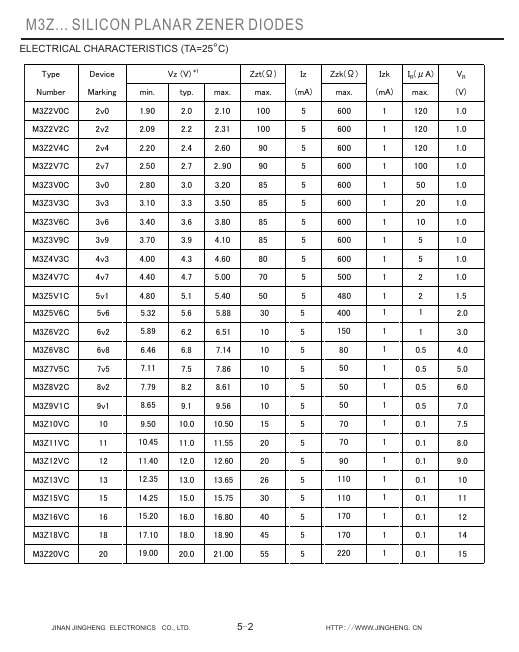

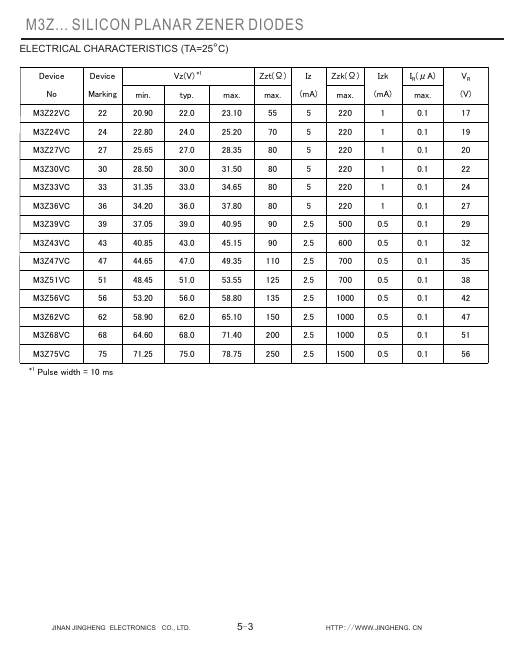

M3Z... SILICON PLANAR ZENER DIODES
ELECTRICAL CHARACTERISTICS (TA=25°C)
Type
Device
Vz (V)
- 1
Zzt(Ω)
Iz
Zzk(Ω) Izk IR(μA)
Number Marking min. typ. max. max. (m A) max. (m A)...
