Datasheet Specifications
- Part number
- M3Z2V0C
- Manufacturer
- JINAN JINGHENG
- File Size
- 783.98 KB
- Datasheet
- M3Z2V0C-JINANJINGHENG.pdf
- Description
- 0.3W SILICON PLANAR ZENER DIODES
Description

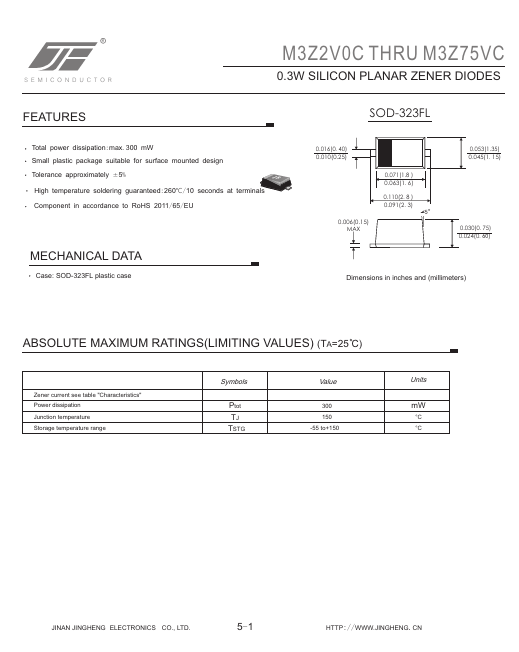

R SEMICONDUCTOR M3Z2V0C THRU M3Z75VC 0.3W SILICON PLANAR ZENER DIODES .
Features
* Total power dissipation:max.300 mW Small plastic package suitable for surface mounted design Tolerance approximately ±5% JF High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU MECHANICAL DATA Case: SOD-323FL plastic case SOD-323FL 0.M3Z2V0C Distributors
