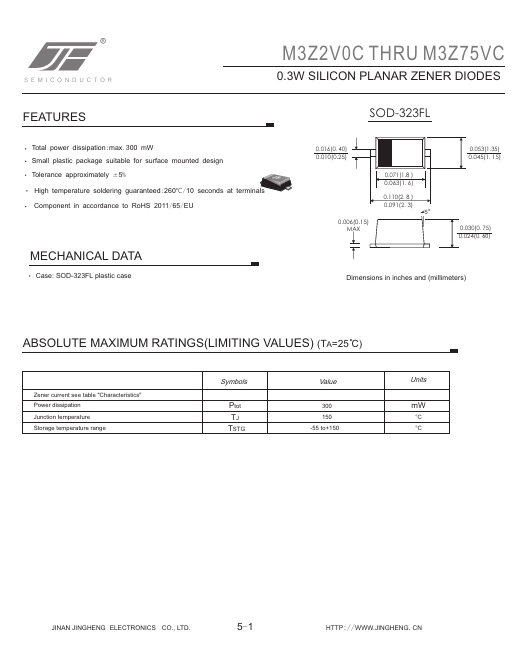

M3Z33VC Features
* Total power dissipation:max.300 mW Small plastic package suitable for surface mounted design Tolerance approximately ±5% JF High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU MECHANICAL DATA Case: SOD-323FL plastic case SOD-323FL 0.
Datasheet Details
M3Z33VC, M3Z2V0C
JINAN JINGHENG
783.98 KB
0.3w silicon planar zener diodes.
This datasheet PDF includes multiple part numbers: M3Z33VC, M3Z2V0C.
Please refer to the document for exact specifications by model.
