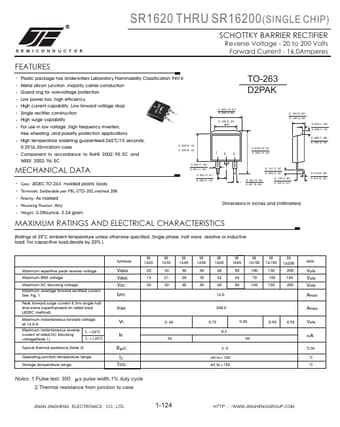

SR1680, SR1620 - SCHOTTKY BARRIER RECTIFIER

JINAN JINGHENG

Datasheet Details

Part number	SR1680, SR1620
Manufacturer	JINAN JINGHENG
File Size	77.53 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	SR1620-JINANJINGHENG.pdf
Note	This datasheet PDF includes multiple part numbers: SR1680, SR1620. Please refer to the document for exact specifications by model.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection TO-263 D2PAK Low power loss ,high efficiency High current capability ,Low forward voltage drop Single rectifier construction High surge capability For use in low voltage ,high frequency inverters, SR1260JF650 0.420(10.67) 0.380(9.65) 0.245(6.22) MIN 0.190(4.83) 0.160(4.06) free wheeling ,and polarity protection.
