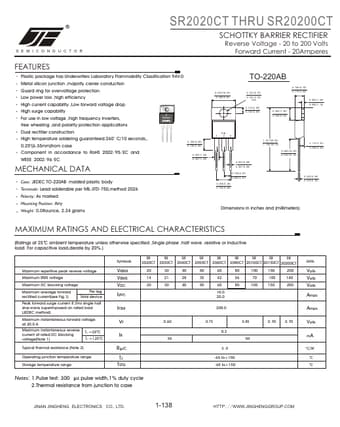

SR2050CT
FEATURES
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Metal silicon junction ,majority carrier conduction
Guard ring for overvoltage protection
Low power loss ,high efficiency
High current capability ,Low forward voltage drop
High surge capability For use in low voltage ,high frequency inverters,
JF SR2060 free wheeling ,and polarity protection applications
Dual rectifier construction
High temperature soldering guaranteed:260° C/10 seconds,,
0.25"(6.35mm)from case ponent in accordance to Ro HS 2002/95/EC and
WEEE 2002/96/EC
0.159(4.05) 0.138(3.50)
0.053(1.34) 0.047(1.20)
MECHANICAL DATA
Case: JEDEC TO-220AB molded plastic body Terminals: Lead solderable per MIL-STD-750,method 2026 Polarity: As marked Mounting Position: Any Weight: 0.08ounce, 2.24 grams
0.410(10.41) 0.390(9.91)
TO-220AB
0.161(4.10)...
