SR350, SR320 Datasheet - JINAN JINGHENG

SR350, SR320, SCHOTTKY BARRIER RECTIFIER

R SEMICONDUCTOR .

SR320-JINANJINGHENG.pdf

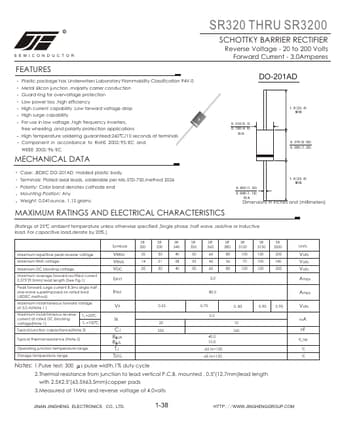

SR350 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR350, SR320. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR350, SR320

Manufacturer:

JINAN JINGHENG

File Size:

59.74 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SR350, SR320.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop High surge capability For use in low voltage ,high

Applications

* High temperature soldering guaranteed:260 C/10 seconds at terminals Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC MECHANICAL DATA JF SR320 THRU SR3200 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 3.0Amperes DO-201AD 0.210(5.3) 0.190(4.8) DIA 1.0
