SRF20100CT, SRF2020CT, SCHOTTKY BARRIER RECTIFIER

R SEMICONDUCTOR SRF2020CT THRU SRF20200CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 20Amperes .

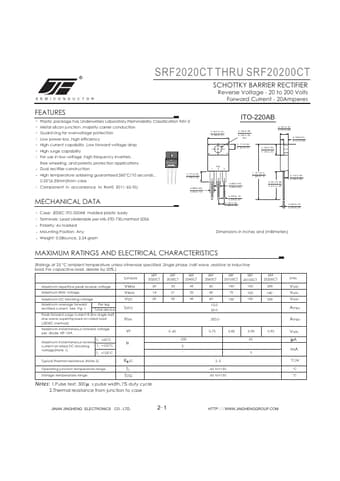

datasheet Preview Page 1 from Datasheet4u.com

SRF2020CT-JINANJINGHENG.pdf

SRF20100CT Datasheet Preview — This datasheet PDF includes multiple part numbers: SRF20100CT, SRF2020CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SRF20100CT, SRF2020CT

Manufacturer:

JINAN JINGHENG

File Size:

50.18 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SRF20100CT, SRF2020CT.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop High surge capability For use in low voltag

Applications

* JF SRF2060CT Dual rectifier construction High temperature soldering guaranteed:260°C/10 seconds,, 0.25"(6.35mm)from case 0.177(4.50) 0.138(3.50) Component in accordance to RoHS 2011/65/EU 0.056(1.43) 0.043(1.10) MECHANICAL DATA Case: JEDEC ITO-220AB molded plastic body Terminals: Lead solder
